300kg Ice Evaporator for Water Cooling Cube Ice Making Machine in Copper
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Jingyao |
Payment & Shipping Terms:
| Price: | $350.00/cases 1-99 cases |
|---|
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail |
|---|---|---|---|
| Showroom Location: | Peru, South Africa, Australia, Philippines, Russia, Thailand | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Type: | Evaporator |
| Application: | Refrigeration Parts | Warranty: | 1 Year |
| Product Name: | Ice Maker Evaporator | Material: | Copper |
| Usage: | Refrigerating System Parts | Keyword: | Ice Cube Evaporator |
| Marketing Type: | New Product 2022 | ||
Product Description
Product Description

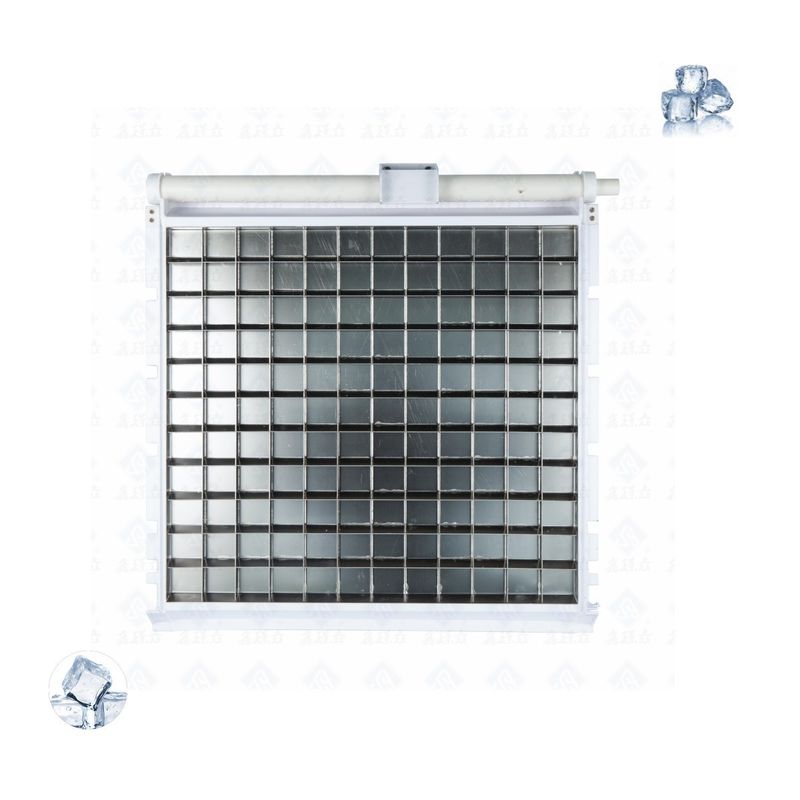

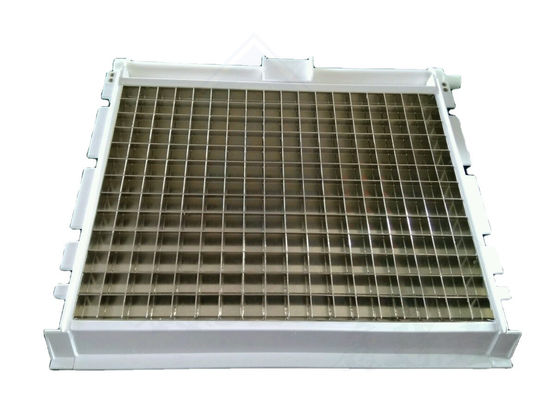

300kg Ice Evaporator For Water Cooling Cube Ice Making Machine
Ice cube evaporator mainly used for quick cycle ice-making of household and commercial ice machine.
Product features:
*Mainly used for quick cycle ice-making of household and commercial ice machine
*It is made of copper by welding, with advantage of heat exchanging.
*In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.
*The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and food safety demands. Compared with traditional electroplated,the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.
*There is 72°~85°incline between the horizontal septa and ice board, so that the ice cube can be dropped smoothly when ice dropping.
*The ice cube is nearly square and it is transparent with high density.
Working principle:
By evaporating the refrigerant in tube,the heat is transferred to ice board;by recycle water pump,the water flows into the ice grid through spaying pipe,it can make ice in cooling conditions and ice drop in heating conditions.
Related Products
Packing&Shipping
Company Introduction
FAQ
Q: Are you add refrigerant in the ice machine? A:Yes, the machine is full of refrigerant, once with water and electric it can work. Q:Do you test the ice machine in your factory? A:Yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines. Q: can you load ice machine into container? A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory. Q:All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America? A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
Q: Are you add refrigerant in the ice machine? A:Yes, the machine is full of refrigerant, once with water and electric it can work. Q:Do you test the ice machine in your factory? A:Yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines. Q: can you load ice machine into container? A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory. Q:All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America? A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
